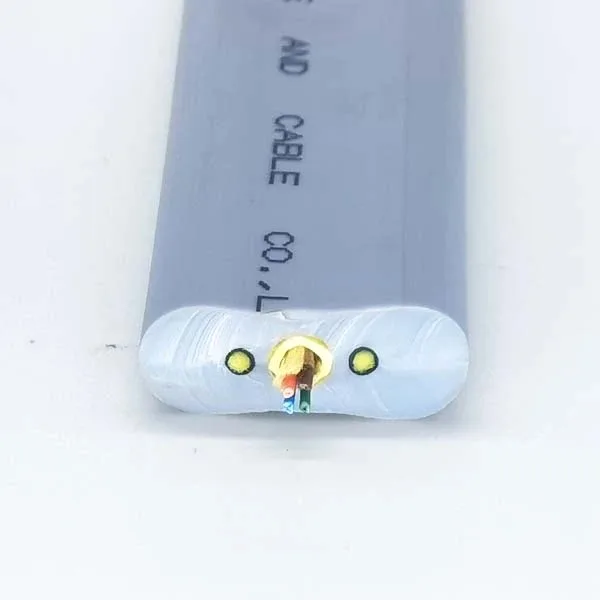

4 Core Single-Mode Fiber Elevator Traveling Cable 25×9 mm
Elevator Traveling Cables · Industrial Automation
Four-core single-mode fiber elevator traveling cable with aramid protection and fillers, PVC sheath, 25×9 mm section, travel speeds of 3-6 m/s.
Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product overview
Applications:
Signal transmission in elevator systems.
Product construction:
- 4 fiber cores
Fiber: single-mode
Protection: aramid + PE tube
Strength member: aramid fiber filled on both sides
Sheath: PVC
Jacket color: gray
Sheath thickness: 2.5±0.5 mm
Cable dimensions: 25±2.0×9±1.0 mm
Travel speed: 3-6 m/s
Properties: water resistant, oil resistant, cold resistant, UV resistant, abrasion resistant, flame retardant.
