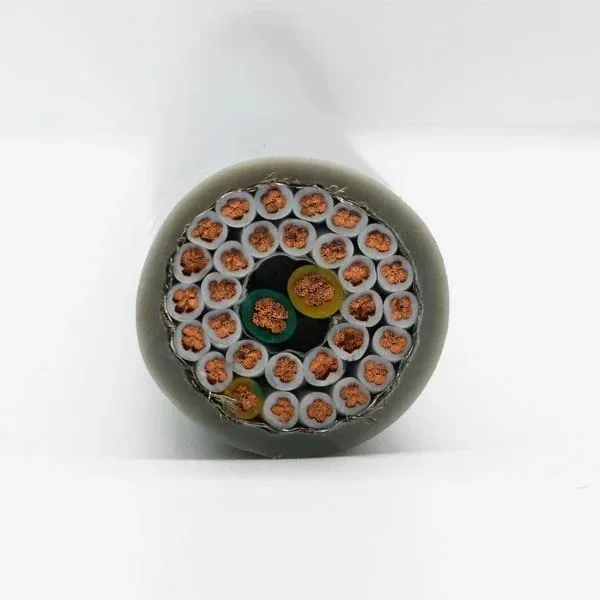

32-Core Crane Pendant Cable 2.5 mm², 450/750 V, PUR Sheath

Name: 32-Core Crane Pendant Cable 2.5 mm², 450/750 V, PUR Sheath
Brand: PAIDE

Elevator Traveling Cables · Industrial Automation

Crane pendant cable with 32x2.5 mm² and 2x4.0 mm² cores, aluminum foil plus bare copper braid shield at 85% coverage, PUR sheath and 450/750 V rating.

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

Applications:

For tower cranes, scraper reclaimers, refuse grabs and similar equipment.

Product construction:

- 32 cores × 2.5 mm²

- 2 cores × 4.0 mm²

Conductor: finely stranded oxygen-free copper, to VDE0295 CLASS6 (tinned copper wire available on request)

Insulation: polyethylene

Shield: aluminum foil and bare copper braid (coverage above 85%)

Outer sheath: PUR

Color: gray

Rated voltage: 450/750 V
