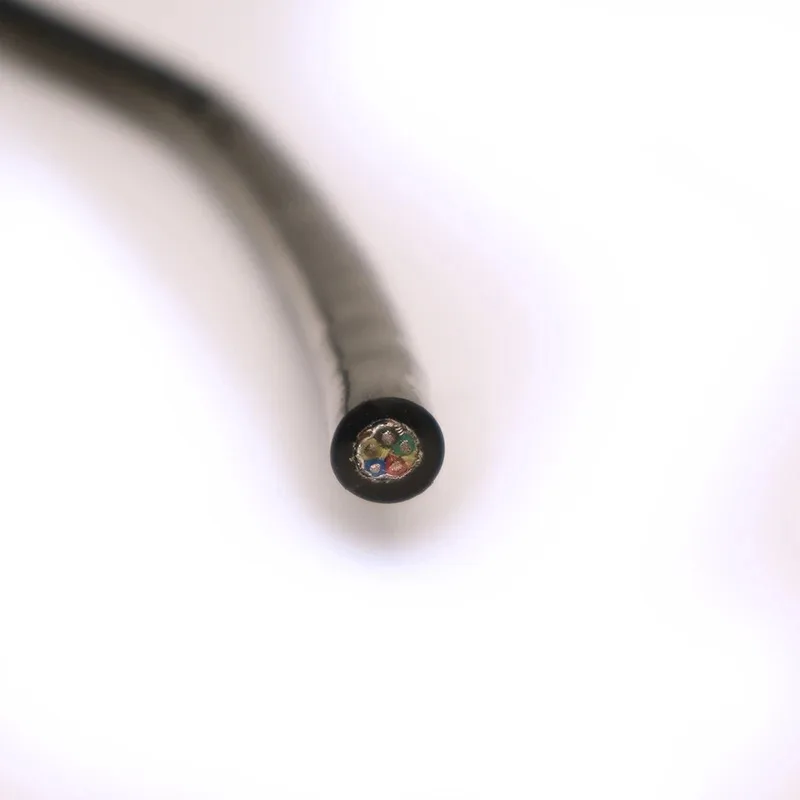

5×0.34 mm² (22AWG) Shielded ROV Signal Cable, 7.6 mm

Name: 5×0.34 mm² (22AWG) Shielded ROV Signal Cable, 7.6 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Five-core 0.34 mm² (22AWG) shielded ROV cable with foil and tinned copper braid, Kevlar strength member and a 7.6 mm PUR sheath for signal transmission.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Power supply, control and signal transmission for underwater equipment

Construction:

- 5 cores 0.34 mm²

(22AWG)

Conductor: multi-strand finely stranded oxygen-free copper, to VDE 0295 Class 6

Insulation: polyethylene

Shield: aluminium foil and tinned copper wire braid (coverage above 85%)

Strength member: Kevlar filler

Wrap: non-woven tape

Outer sheath: PUR

Diameter: 7.6 mm

Colour: black

The cable consists of five 0.34 mm² cores with double shielding. It offers high flexibility, resistance to underwater pressure, seawater corrosion, low underwater temperatures, oil and UV, together with abrasion resistance, flame retardancy and a long service life, and is suitable for rapid installation of underwater instruments and equipment.
