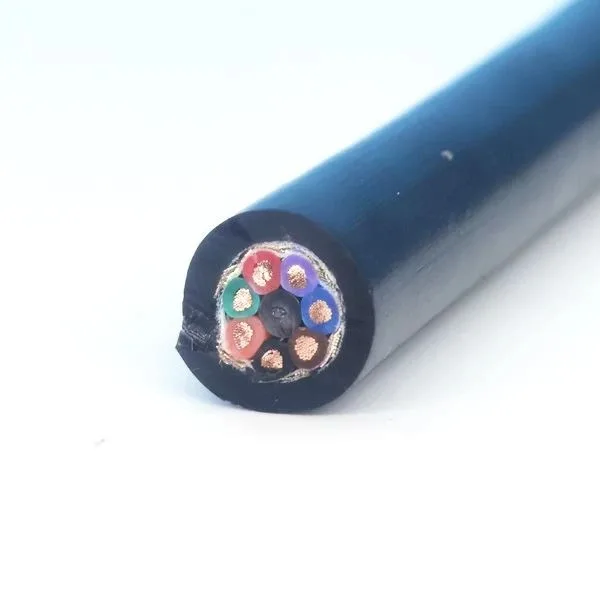

7-Core 20AWG (0.5 mm²) Underwater Power and Control Cable, PUR Sheath

Name: 7-Core 20AWG (0.5 mm²) Underwater Power and Control Cable, PUR Sheath
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Seven-core 20AWG (0.5 mm²) underwater power and control cable with PE insulation, tinned copper braid shield and black PUR sheath for long-term immersion.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Power supply and control connections for underwater equipment

Construction:

- 7 cores 20AWG (0.5 mm²)

Conductor: multi-strand finely stranded oxygen-free copper, to VDE 0295 Class 6

Insulation: polyethylene

Shield: tinned copper wire braid (coverage above 85%)

Wrap: non-woven tape

Outer sheath: PUR

Colour: black

Features: good water resistance, resistance to acids and alkalis, UV resistance and high tear strength; reliable under extreme conditions and long service life, which helps reduce equipment downtime.

The cable carries seven power and control cores and has one layer of tinned copper wire braid shielding that protects the signal against external interference. It offers high strength, tensile and abrasion resistance, and resistance to acid and alkali attack. It can be dragged through seawater, wastewater and fresh water for long periods.
