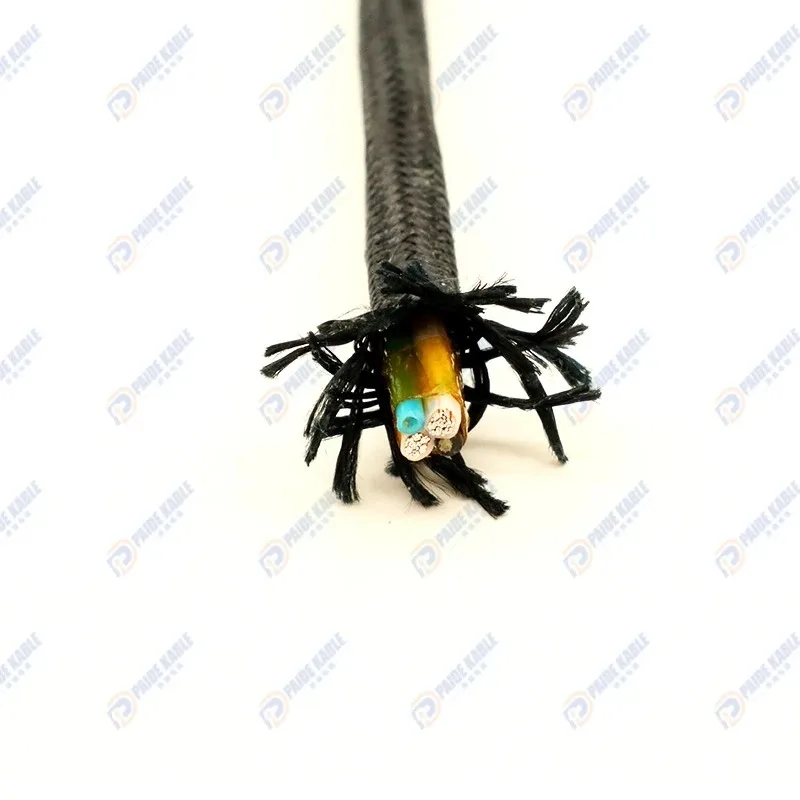

PDK41300-2×18AWG + 4SMF Power and Fibre Tethered Drone Cable

Name: PDK41300-2×18AWG + 4SMF Power and Fibre Tethered Drone Cable
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

Tethered drone hybrid cable with 2 × 18AWG (0.82 mm²) power cores and 4 single-mode G657A2 fibres, FEP/PTFE insulation, 4.6 mm diameter, 1.5 kg per 100 m.

Request pricing → Email engineering

Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Fly higher, see further and do more with a durable, lightweight hybrid cable solution.

Model: PDK41300-2×18AWG+4SMF

Cable construction:

- 2 × 18AWG (0.82 mm²)

- 4 single-mode fibres (fibre type: G657A2)

Insulation material: FEP/PTFE

Conductor: silver-plated copper / lightweight copper alloy

Sheath: high-strength aerospace fibre

Outer sheath colour: black

Temperature range: -55 °C to +150 °C

Outer diameter: 4.6 mm
