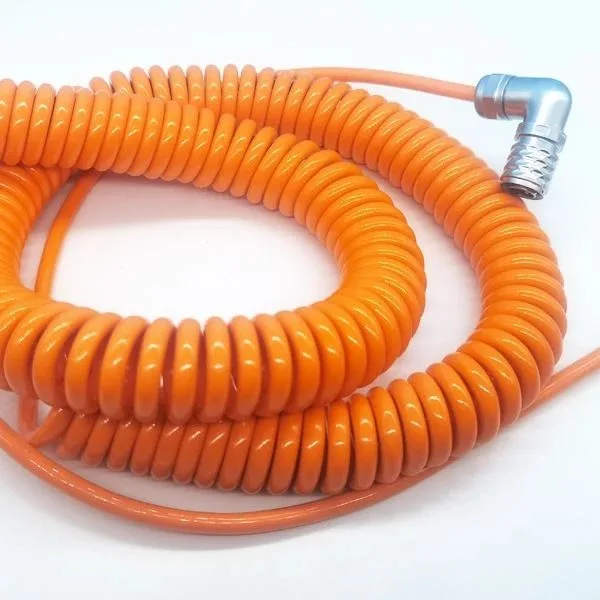

3-Core 0.75 mm² (18AWG) Custom Spiral Spring Cable with SF1214/P Connector

Product introduction

In producing spiral cables, our many years of experience have built up specialist knowledge in meeting customer requirements. Flexibility and durability are the key factors in applications that demand high performance over a long period. Having the right insulator and the right conductor material is equally important. We have specifically developed and optimised these spiral cables for applications such as data and current control.

Applications:

This spiral cable is a custom cable supplied with a connector on one side.

Construction:

- 3 cores 0.75 mm² (18AWG)

- Conductor: multi-strand oxygen-free copper

- Insulation material: PVC

- Insulation colours: blue, brown, black

- Sheath material: PVC

- Sheath colour: orange

- Cable diameter: 6.0 mm

- Coil diameter: 29.1 mm

- Connector: SF1214/P

Features:

Temperature range: -40 °C to 80 °C

Extended length up to 4.5 times the unextended spiral length

High retraction force

Suitable for indoor and outdoor use and for damp environments.

Good oil, chemical, abrasion, cold and weather resistance

Different functions can be customised to customer requirements, such as low-temperature versions, reduced diameters and high tensile strength.
