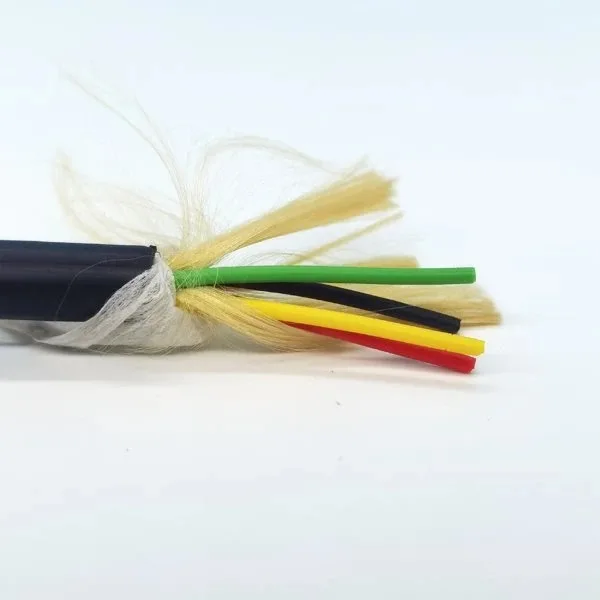

4×0.3 mm² (22AWG) Geophysical Prospecting and Logging Cable, PUR Sheath

Name: 4×0.3 mm² (22AWG) Geophysical Prospecting and Logging Cable, PUR Sheath
Brand: PAIDE

Specialty & Instrumentation Cables · Industrial Automation

Four-core 0.3 mm² (22AWG) geophysical logging cable with oxygen-free copper conductor, PE insulation, 100 kg Kevlar filler and black PUR sheath.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

The geophysical prospecting cable serves as a dedicated cable for geological drilling and well logging. It is used mainly for zenith angle and azimuth measurement in geological drilling and for downhole logging signal transmission in the engineering departments of the chemical, hydropower, coal, petroleum, metallurgical and nuclear industries.

Construction:

- 4 cores 0.3 mm² (22AWG)

Conductor: multi-strand oxygen-free copper wire, to VDE 0295 Class 6

Insulation: polyethylene

Insulation colours: red, black, green, yellow

Strength member: Kevlar filler (100 kg)

Outer sheath: PUR

Colour: black

Features: resistance to acids and alkalis, corrosion, high temperature, hydrolysis and oil.
