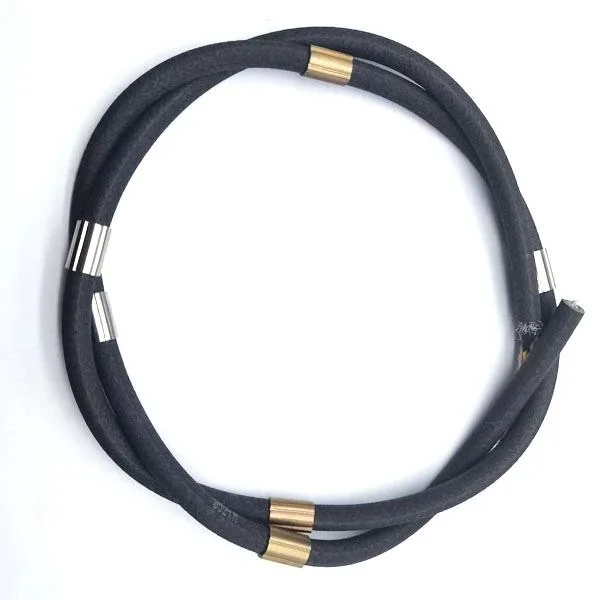

Inclinometer Geophysical Cable 4×0.5mm² Kevlar 1000kg

Product introduction

Application:

Inclinometer cable (also called geophysical cable) is used in geophysical exploration and for signal transmission in field work in the petroleum, hydropower, coal, metallurgy and engineering geology sectors. Geophysical cable can also serve as geological borehole logging cable, for measuring the dip angle and azimuth of boreholes and transmitting downhole logging signals.

Cable construction:

Conductor: stranded oxygen-free copper, flexible and corrosion resistant.

Tinned or silver-plated copper wire to CDE0295 Class6

Insulation: FE/TPEE

Shield: tinned copper braid / aluminium foil

Filler: lightweight aramid (Kevlar) fibre or steel wire as strength member (customisable, 100-1000kg)

Inner jacket: TPU (customisable)

Outer jacket: TPU, matt or transparent

Hardness: 90A, 95A

Temperature range: -35~90℃

Marking: every 0.5m (to customer requirement). Marking can be in two colours (every 0.5m and every 1m)

Marking material: copper marker, plastic marker or print under the transparent outer jacket

Graduation: laser printed

Specification: 4*0.3 outer diameter 6.0-6.8mm; 4*0.5 outer diameter 7.8-8.5mm

Features:

High accuracy and fast response

Outer jacket elongation <98%

Good heat ageing performance

- remains flexible at low temperature

Excellent water resistance, weather resistance and resistance to microbial attack.
