PDK81600-2×20AWG + STP 1×2×26AWG Floating ROV Tether 120kg

Name: PDK81600-2×20AWG + STP 1×2×26AWG Floating ROV Tether 120kg
Brand: PAIDE
SKU: PDK81600-2x20AWG+STP 1x2x26AWG-120KG

Zero-Buoyancy Cables · Marine & Subsea

PDK81600-2x20AWG+STP 1x2x26AWG-120KG

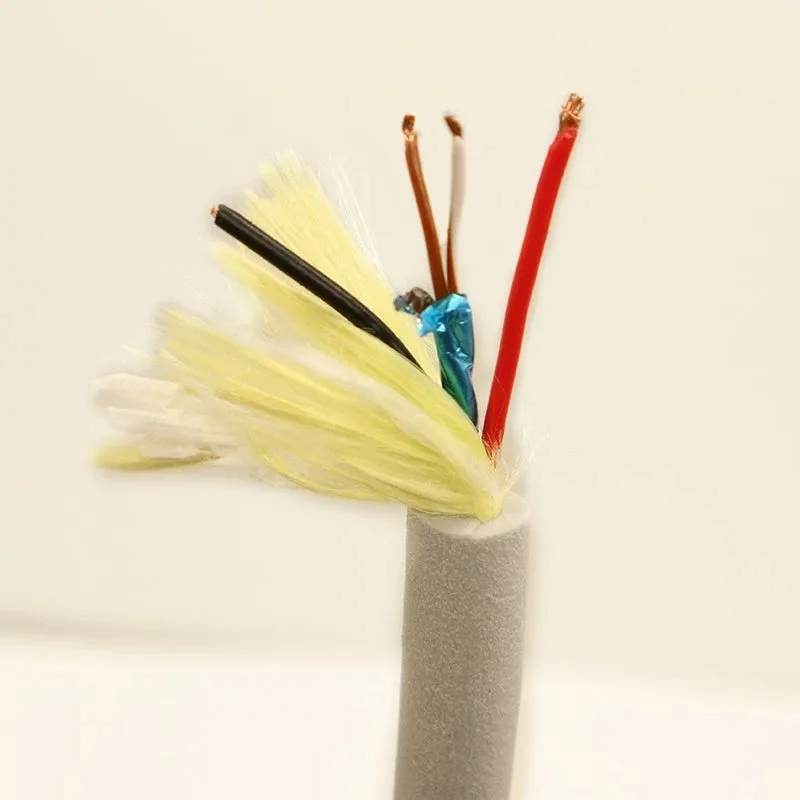

Floating ROV tether with 2×0.5mm² (20AWG) power cores and one STP 26AWG signal pair, 120kg Kevlar filler, PUR foam jacket, -30℃~105℃.

Model

PDK81600-2x20AWG+STP 1x2x26AWG-120KG

Construction

2×20AWG + STP 1×2×26AWG Floating ROV Tether 120kg

Tensile strength

120 kg

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application: ROV and AUV systems.

Model: PDK81600-2×20AWG+STP 1×2×26AWG-120KG

Cable construction:

- 2 cores 0.5mm² (20AWG) for power

- 1 STP twisted pair 26AWG (0.14mm²) for signal transmission

Strength member: Kevlar filler (120kg)

Temperature range: -30℃~105℃

Jacket: PUR foam

Outer jacket color: grey

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

Underwater ROV cables are a typical product line for us. We can customise different sizes and constructions to each customer's requirements.
