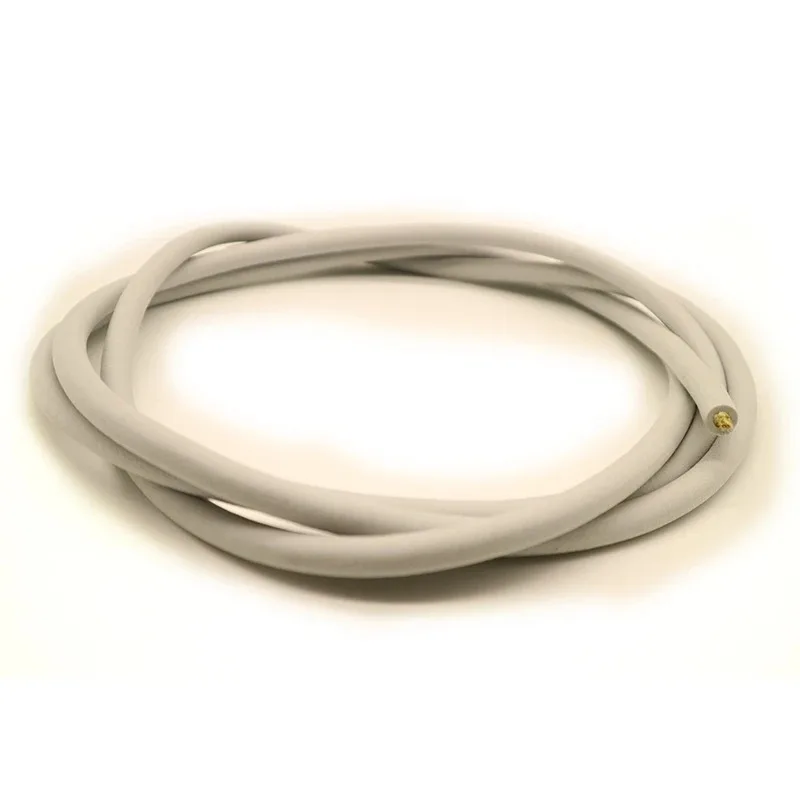

PDK81600-4×2×26AWG 400 kg ROV Tether 500 m

Name: PDK81600-4×2×26AWG 400 kg ROV Tether 500 m
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Eight-core neutrally buoyant ROV tether with four 26AWG twisted pairs, PE insulation, 400 kg aramid strength member, 8.8 mm diameter, 500 m depth.

Construction

4×2×26AWG 400 kg ROV Tether 500 m

Tensile strength

400 kg

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

The ROV tether is a high-quality tether designed for remotely operated vehicles and other subsea applications.

Model: PDK81600-4×2×26AWG-400KG

Cable construction:

- 4 twisted pairs 26AWG (0.14 mm²)

Insulation material: PE

Tensile strength: 400 kg (aramid filler)

Sheath: PUR foam

Jacket color: gray

Temperature range: -30℃~105℃

Outer diameter: 8.8 mm

Depth rating: 500 m

Properties: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant.

This 8-core buoyant cable is an ROV tether. It is neutrally buoyant with a breaking strength of 400 kg and incorporates water-blocking fibers to seal any leak. The cable core contains aramid yarn for strength and polyester yarn as space filler; both fibers are impregnated with a water-blocking compound so that a nick or crack in the cable cannot cause a leak.

If you cannot find the model you need, please contact us at any time.
