PDK81600 4x2x24AWG-150KG Neutrally Buoyant ROV Tether

Name: PDK81600 4x2x24AWG-150KG Neutrally Buoyant ROV Tether
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Neutrally buoyant ROV tether with four 24AWG twisted pairs, 150 kg breaking strength, water-blocked core, 9.2 mm diameter, 500 m depth.

Specification

Custom-built

Tensile strength

150 kg

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

The ROV tether is a high-quality tether designed for remotely operated vehicles and other subsea applications.

Model: PDK81600-4x2x24AWG-150KG-DJ

Cable construction:

- 4 twisted pairs 24AWG (0.2 mm²)

Insulation material: PE

Tensile strength: 150 kg (Kevlar filler)

Inner sheath: PUR foam

Outer sheath: PUR

Outer sheath color: yellow

Temperature range: -30 °C to 90 °C

Outer diameter: 9.2 mm

Depth rating: 500 m

Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant.

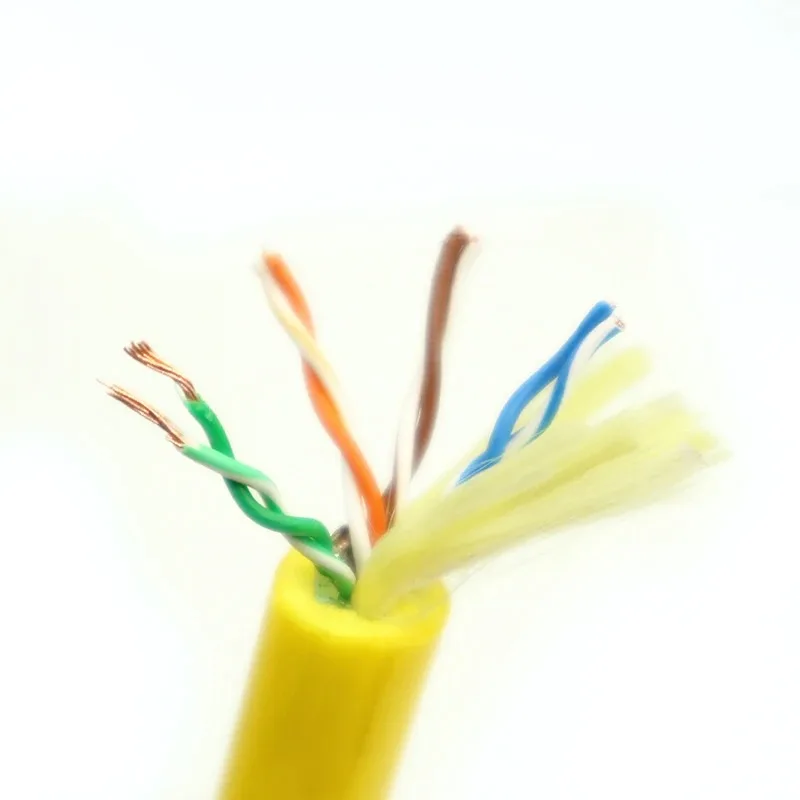

This 8-core buoyant cable is an ROV tether. It is neutrally buoyant with a breaking strength of 150 kg and incorporates water-blocking fibers to seal any leak. The cable core contains Kevlar yarns for strength and polyester yarns as space fillers. Both fiber types are impregnated with a water-blocking compound so that a nick or crack in the cable does not cause a leak.

The high-visibility yellow polyurethane foam sheath resists abrasion and provides neutral buoyancy. The cable stiffness is designed to be flexible enough to give your ROV sufficient freedom of movement, yet stiff enough not to kink easily.

If you have not found the model you need, please contact us at any time.
