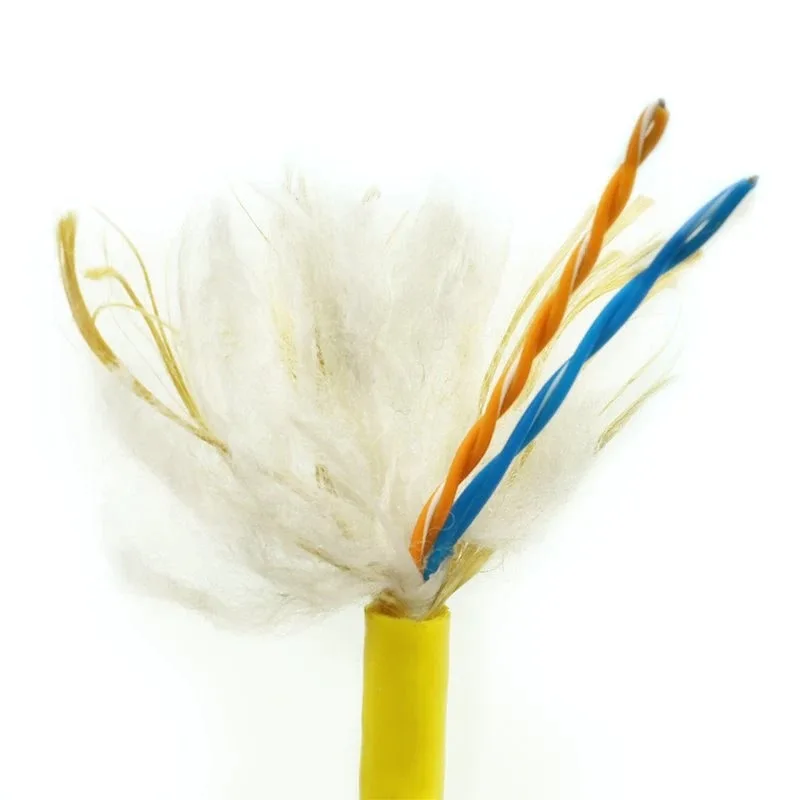

PDK81600 2x2x24AWG-150KG-DJ Neutrally Buoyant ROV Tether, 150 kg, 500 m

Name: PDK81600 2x2x24AWG-150KG-DJ Neutrally Buoyant ROV Tether, 150 kg, 500 m
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Four-core floating ROV tether: two 24AWG pairs, 150 kg Kevlar breaking strength, yellow PUR foam sheath, 6.0 mm OD, 500 m depth rating.

Construction

2x2x24AWG

Tensile strength

150 kg

Request pricing → Email engineering

Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

The ROV tether is a high-quality tether designed for remotely operated vehicles and other subsea applications.

Model: PDK81600-2x2x24AWG-150KG-DJ

Cable construction:

- 2 twisted pairs 24AWG (0.2 mm²)

Insulation material: PE

Tensile strength: 150 kg (Kevlar filler)

Inner sheath: PUR foam

Outer sheath: PUR

Jacket colour: yellow

Temperature range: -30 °C to 105 °C

Outer diameter: 6.0 mm

Depth rating: 500 m

Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant.

This 4-core floating cable is an ROV tether. It is neutrally buoyant, has a breaking strength of 150 kg, and incorporates water-blocking fibres to seal any breach. The cable core contains Kevlar yarns for strength and polyester yarns as space fillers. Both fibres are impregnated with a water-blocking compound to prevent any leakage through nicks or cracks in the cable.

The high-visibility yellow polyurethane foam sheath resists abrasion and provides neutral buoyancy. The cable stiffness is designed to be flexible enough to give your ROV sufficient freedom of movement, yet stiff enough not to twist easily.

If you cannot find the model you need, please contact us.
