PDK81600-2x1.5+STP 3x2x26AWG-200KG Floating ROV Tether - 200 kg Kevlar Braid

Name: PDK81600-2x1.5+STP 3x2x26AWG-200KG Floating ROV Tether - 200 kg Kevlar Braid
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Floating ROV tether with 2x1.5 mm2 (16AWG) power cores, three STP 26AWG (0.12 mm2) signal pairs, 200 kg Kevlar braid strength member and foamed PUR sheath.

Construction

2x1.5+STP 3x2x26AWG

Tensile strength

200 kg

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications: ROV and AUV systems.

Model: PDK81600-2x1.5+STP 3x2x26AWG-200KG

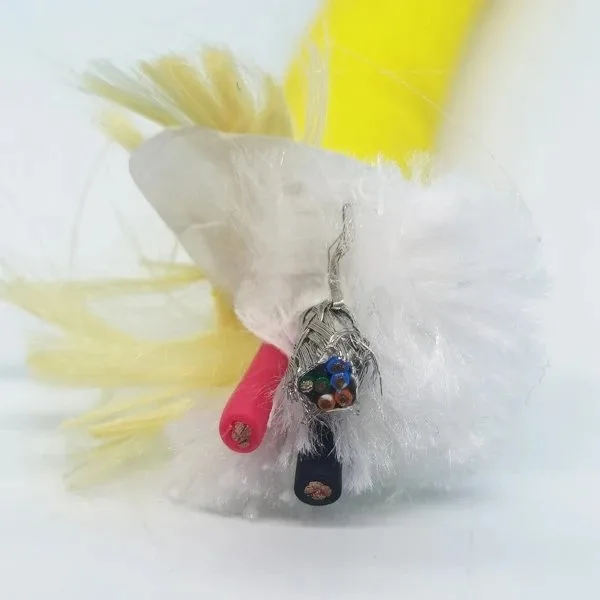

Cable construction:

- 2 cores x 1.5 mm²

(16AWG) for power

- 3 STP twisted pairs 26AWG (0.12 mm²

) for signal transmission

Strength member: Kevlar braid (200 kg)

Temperature range: -30 C to +105 C

Sheath: foamed PUR

Outer sheath color: yellow
