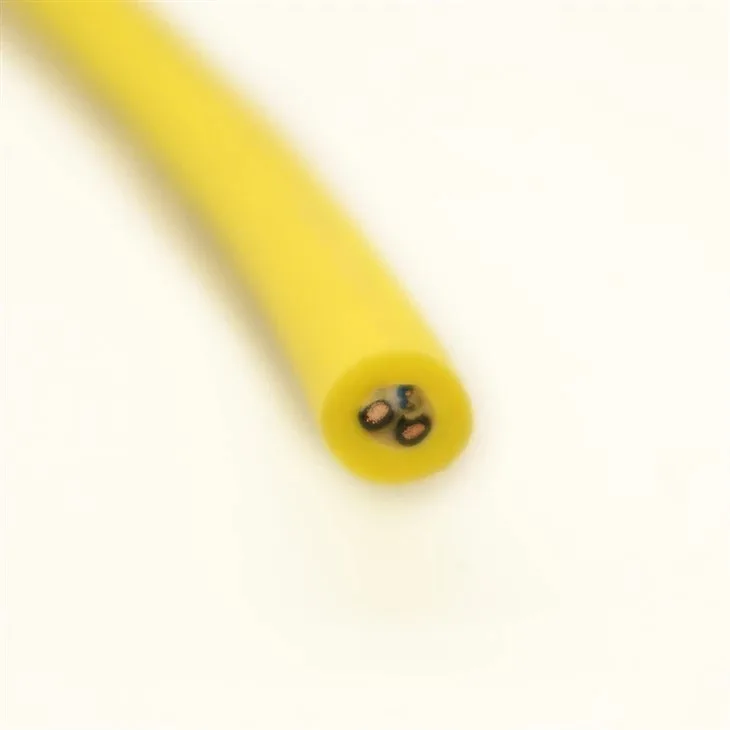

PDK81600-2×1.0 + 1×2×28AWG-100KG Neutrally Buoyant ROV Tether, 9.6mm

Name: PDK81600-2×1.0 + 1×2×28AWG-100KG Neutrally Buoyant ROV Tether, 9.6mm
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Neutrally buoyant ROV tether with two 1.0mm² power cores and one 28AWG pair, Kevlar strength member rated 100kg, foamed PUR sheath, 500-1000m depth rating.

Construction

2×1.0 + 1×2×28AWG

Tensile strength

100 kg

Request pricing → Email engineering

Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Neutrally buoyant cables are used for on-board operations. Ocean-going vessels often work in water hundreds or even thousands of metres deep and, besides the necessary equipment and instruments, need cables for power transmission, video and signal transmission. These cables are usually lightweight and either neutrally, positively or negatively buoyant.

Model: PDK81600-2*1+1*2*28AWG-100KG

Cable construction:

- 2 cores × 1.0mm²

(17AWG)

- 1 pair × 0.08mm²

(28AWG)

Insulation material: PE

Strength member: Kevlar filler (100kg)

Sheath: PUR foam

Outer sheath colour: yellow

Temperature range: -30℃~90℃

Outer diameter: 9.6mm
