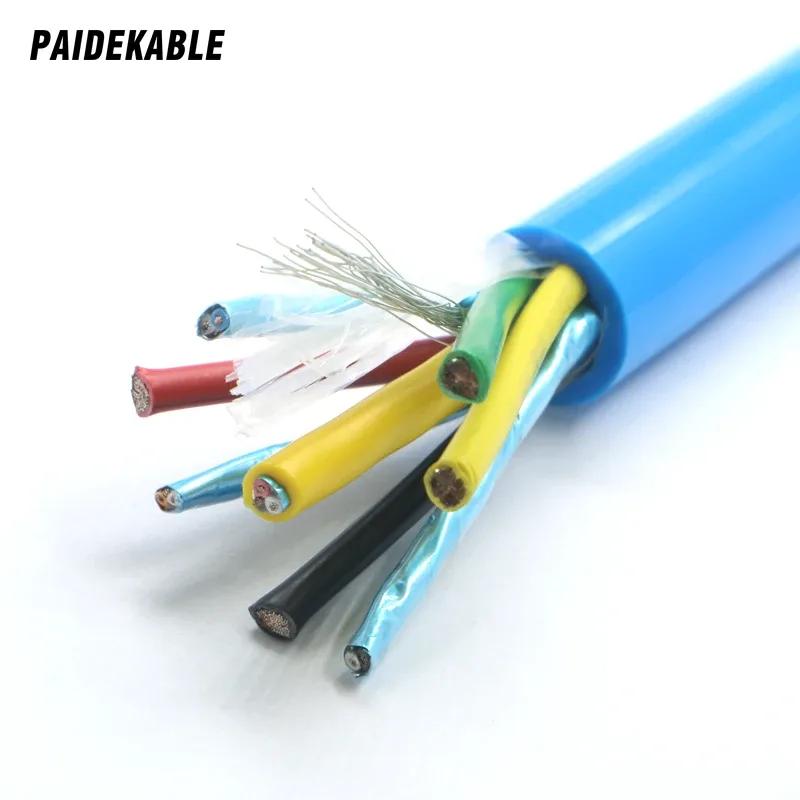

PDK81301 4x2.5 + 3x2x0.2 + 1x2x0.2 Multi-Core Subsea Power Cable

Name: PDK81301 4x2.5 + 3x2x0.2 + 1x2x0.2 Multi-Core Subsea Power Cable
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Subsea power, signal and fiber composite cable with 4x2.5 mm² power cores, three 2x0.2 mm² pairs and a fiber unit, 14 mm PUR sheath, 10 MPa rating.

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

This product is a combined power, signal and fiber watertight (subsea) cable, designed for complex underwater systems that need high-current power supply, multi-channel signal control and optical data transmission at the same time, such as ROVs, AUVs, subsea production systems and underwater scientific instruments. It integrates high-voltage power transmission, twisted-pair signal cores and fiber units in a fully sealed construction, providing versatility without compromising watertight integrity.

Model

PDK81301-4*2.5+3*2*0.2+1*2*0.2

Specification

4*2.5+3*2*0.2+1*2*0.2

Conductor material

Tinned copper wire

Insulation material

Cross-linked polyethylene (XLPE)

Sheath material

Polyether polyurethane (PUR)

Sheath outer diameter (mm)

14 ±0.3 mm

Sheath color

Water blue

Temperature range

-40 to 105 °C

Water pressure resistance

10 MPa

The cable uses a PUR (polyether polyurethane) outer sheath with high abrasion resistance, good low-temperature flexibility and resistance to oil, grease and seawater, ensuring long-term durability in harsh subsea environments.

Ideally suited to:

ROVs and AUVs that need power, control and high-bandwidth data in a single tether

Subsea production systems and offshore oil and gas platforms

Underwater scientific observatories and real-time monitoring networks

Sonar systems, acoustic arrays and seabed instruments

Marine renewable energy systems and subsea power distribution

Any subsea equipment that requires integrated power, multi-channel signal and fiber transmission under extreme marine conditions

The cable is designed to carry high-current power together with sensitive control signals and high-speed fiber data without the need for several separate cables. It suits subsea robotics, deep-sea exploration, marine engineering and underwater defense systems.
