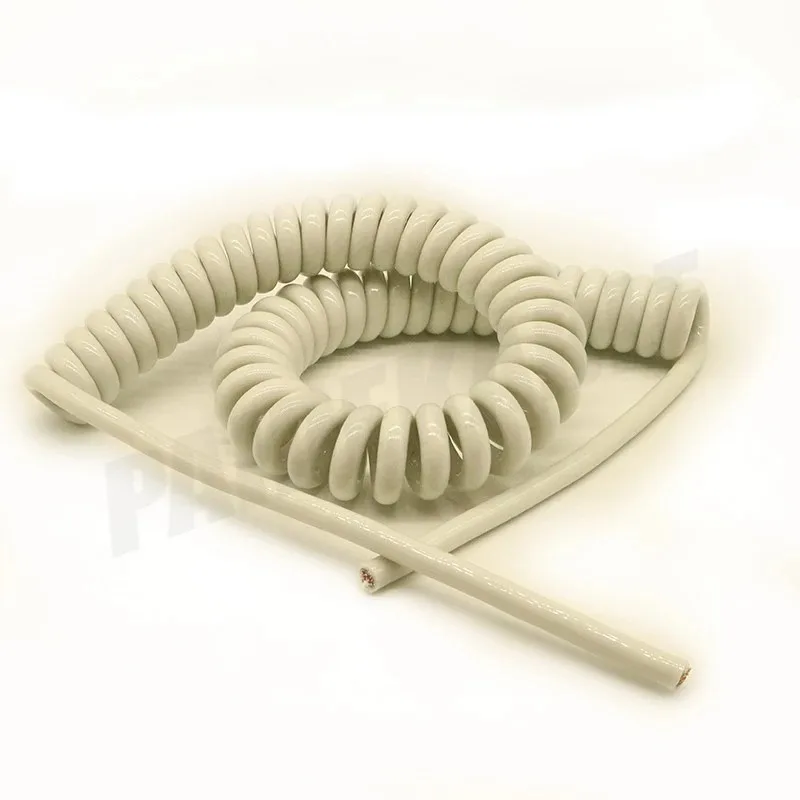

6×26AWG Medical Coiled Cable, White PUR, 50 cm Extended, 2–2.5 m Retracted

Name: 6×26AWG Medical Coiled Cable, White PUR, 50 cm Extended, 2–2.5 m Retracted
Brand: PAIDE

Spiral & Spring Cables · Industrial Automation

Six-core 26AWG coiled cable for medical equipment, PE insulation and white PUR sheath, 50 cm extended and 2–2.5 m retracted length.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

The coiled cable is designed for demanding medical environments; the product is a high-quality 6-core 26AWG spring coil cable. Its clean white appearance meets the visual requirements for cleanliness and professionalism in medical environments and also signals its medical-grade internal performance and reliability. The cable is a suitable choice for signal transmission and power connection in vital-sign monitoring systems, diagnostic equipment and other precision medical devices, ensuring stable and safe transmission of critical data and power.

Main specifications

Conductor: 6 individually insulated 26AWG stranded copper conductors, providing good signal integrity and moderate current-carrying capacity.

Sheath material: medical-grade PVC or TPU (customisable on request), flexible, resistant to flex fatigue and meeting biocompatibility and low-odour requirements.

Cable form: precision wound spring coil (retractable) design. It has good elasticity (typically extending to several times its original length), which effectively solves the connection challenge of moving parts in equipment and prevents the cable from tangling, over-extending and being damaged.

Standard colour: medical white, easy to identify and clean and visually harmonious with most medical equipment.

Electrical performance: operating voltage, insulation resistance and withstand voltage class meet or exceed the relevant medical electrical safety standards.

Specification

Cable type: spring cable

Conductor: 6*26AWG

Insulation: polyethylene

Sheath: PUR (customisable).

Colour: white (customisable).

Length (extended): 50 cm (varies by model).

Length (retracted): 2–2.5 m (varies by model).

Typical applications

Patient monitors (for ECG/EEG lead wires and sensor connections)

Portable diagnostic devices and probe connections

Internal connections for moving parts in electric hospital beds and infusion pumps
