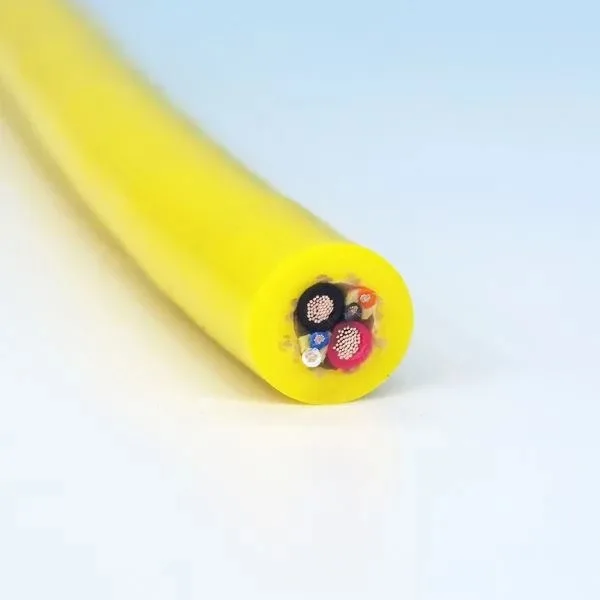

Underwater Power and Signal Cable, 2x1.0 mm2 + 2x2x0.2 mm2, 100 kg Kevlar, Yellow PUR

Name: Underwater Power and Signal Cable, 2x1.0 mm2 + 2x2x0.2 mm2, 100 kg Kevlar, Yellow PUR
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Torque-balanced subsea hybrid cable: 2x1.0 mm2 power cores plus two 0.2 mm2 signal pairs, 100 kg Kevlar strength layer, yellow PUR sheath, watertight.

Construction

2x1.0 mm2 + 2x2x0.2 mm2, 100 kg Kevlar, Yellow PUR

Tensile strength

100 kg

Request pricing → Email engineering

Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

PAIDEKABLE supplies high watertight, torque-balanced multicore hybrid cables for vessels, offshore oil platforms and deep-sea resource exploration, and for underwater vehicles in fixed and mobile systems carrying data and power.

The cable is well suited to underwater power supply and communication.

Product construction:

- 2 cores 1.0 mm2 (17AWG) power

- 2 twisted pairs 0.2 mm2 (24AWG) for signal transmission

Conductor: stranded oxygen-free copper, compliant with VDE 0295 Class 6

Insulation: polyethylene

Strength layer: Kevlar fibre filler (100 kg)

Outer sheath: PUR

Colour: yellow

Features

Good watertight performance, acid and alkali resistance, UV resistance and tear resistance, with high reliability under extreme conditions and long cable life, which helps reduce equipment downtime.
