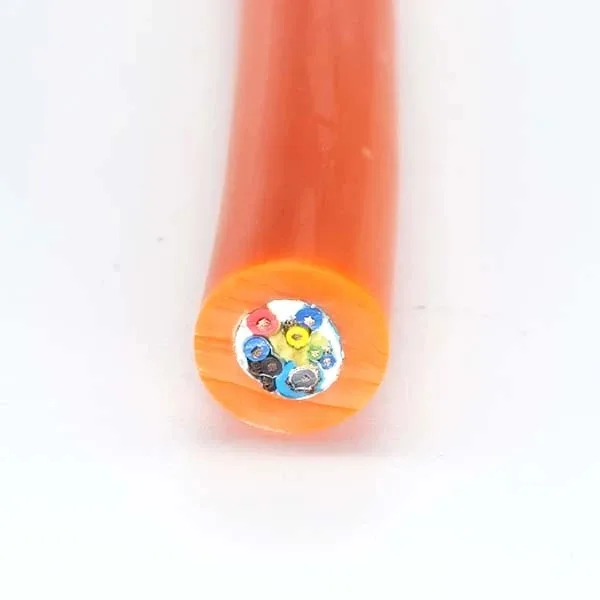

Underwater Camera Cable 75Ω Coax + 14AWG + TPU Jacket, 150kg

Name: Underwater Camera Cable 75Ω Coax + 14AWG + TPU Jacket, 150kg
Brand: PAIDE
SKU: Custom

Underwater Power Cables · Marine & Subsea

Custom

Subsea camera cable combining a 75Ω coaxial core, one 14AWG power core and three signal pairs, with Kevlar fillers rated 150kg and a TPU jacket.

Model

Custom

Insulation

Coaxial

75-2 (75Ω), for runs under 200 m

Shield

Aluminium foil + drain wire, pairs individually shielded

Strength member

Kevlar fillers, 150 kg

Jacket

TPU

Temperature range

-30 °C to +105 °C

Tensile strength

150 kg

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Underwater camera cable

Application:

ROV and underwater camera systems

Cable construction:

- 75Ω coaxial cable

- 1 core, 14AWG (2.0mm²)

- 2 pairs, 16AWG (1.5mm²)

- 1 pair, 17AWG (1.0mm²)

Insulation material: PE

Coaxial: 75-2 (75Ω), suitable for transmission distances under 200 m

Jacket material: TPU

Tensile strength: 150 kg (Kevlar fillers)

Shield: aluminium foil + drain wire, with individual pair shielding

Temperature range: -30 °C to +105 °C

Properties: oil-resistant, flame-retardant, hydrolysis-resistant, anti-microbial, UV-resistant.

What do you do when you cannot find an underwater cable that meets your specification?

In such cases we supply cost-effective underwater cables. The cable has to be durable enough for continuous deployment in the harshest environments and the most demanding conditions.
