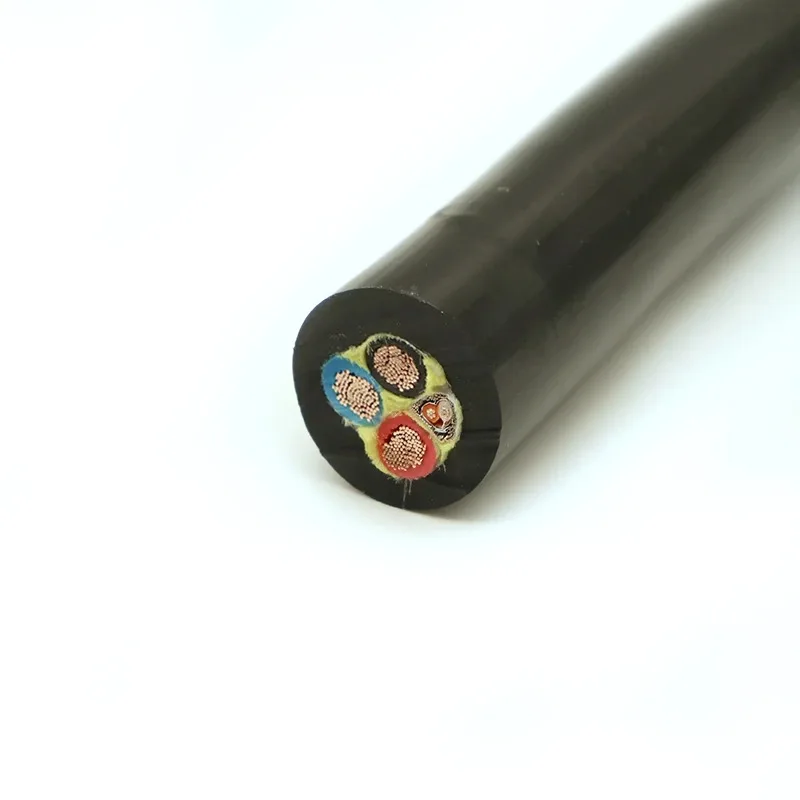

Umbilical ROV Cable – 1 Pair 24AWG + 3×12AWG, Kevlar 150 kg, PUR Sheath, OD 12.7 mm

Name: Umbilical ROV Cable – 1 Pair 24AWG + 3×12AWG, Kevlar 150 kg, PUR Sheath, OD 12.7 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Custom umbilical for ROV and AUV systems: one 24AWG pair plus three 12AWG power cores, Kevlar strength member 150 kg, PUR sheath, OD 12.7 mm.

Construction

3×12AWG, Kevlar 150 kg, PUR Sheath, OD 12.7 mm

Tensile strength

150 kg

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application fields

Offshore oil and gas

Renewable energy subsea systems

Offshore equipment systems

ROV and AUV systems

Underwater cameras

Diving equipment systems

Cable construction:

- 1 pair 24AWG (0.2 mm²)

- 3 cores 12AWG (3.3 mm²)

Insulation: polyethylene

Shield: tinned copper braid, aluminium foil on the signal pairs

Strength member: Kevlar filler (150 kg)

Outer sheath: PUR

Outer sheath colour: black

Temperature range: -40 °C to +105 °C

Diameter: 12.7 mm

Features: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant and so on.

This is a cable customised to customer requirements.

Underwater umbilical cables are a typical cable programme for us. We can customise different sizes and different types to each customer's requirements.
