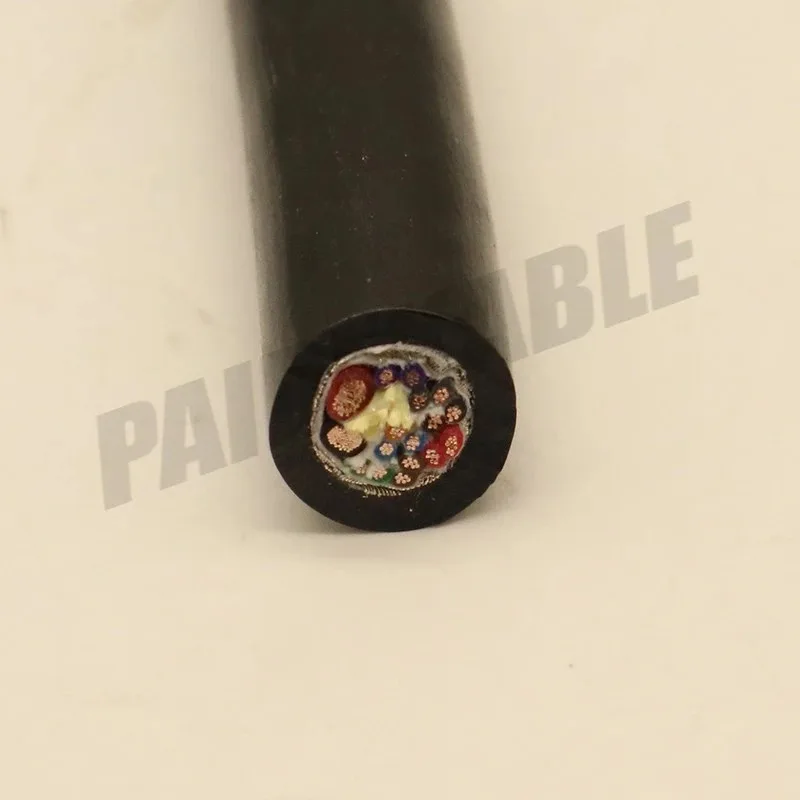

PDK80301-TS Underwater Umbilical Cable, 2x1.0 mm2 + 8x2x0.2 mm2, TPU Sheath, 10.5 mm
Underwater Power Cables · Marine & Subsea
Subsea umbilical: 2x1.0 mm2 power cores plus 8 signal pairs, tinned copper braid shield, TPU sheath, 300/500 V, 10.5 mm OD, watertight to 20 MPa.
Product introduction
Technical specifications
Conductors: 2 cores of 1.0 mm² for power supply, 8 twisted pairs for signal transmission.
Insulation: polyethylene
Shielding: overall shield, tinned copper braid (≥80%)
Sheath: TPU (thermoplastic polyurethane)
Diameter: 10.5 ± 0.5 mm
Rated voltage: 300/500 V
Temperature: -40 °C to 90 °C
Key features
Watertight under hydrostatic pressure: 20 MPa
High-density configuration for multiple signal or power channels.
Robust construction: UV-resistant sheath and corrosion-resistant materials.
Flexible and durable: retains flexibility at low temperatures (-40 °C) and high temperatures (+85 °C).
EMI/RFI protection: optional aluminium foil plus braid shield (customisable).
Applications
- Submersible pumps and underwater vehicles
- Marine sensors, sonar systems and offshore equipment
- Outdoor LED lighting and solar installations
- Industrial automation in wet environments
- Railway and transport systems
Packaging and warranty
- Standard length: 100 m per coil (custom lengths available).
- 12-month warranty against manufacturing defects.
Designed for harsh environments, and built for reliable service.
